YY-01 (800) SERIES
YY-01(800) is a low pressure Slabstock Foaming machine with a total output of 125 – 380 Kgs/min to produce continuously with Square Block system and suitable for mid–large scaled production. The Machine is specially designed to work with either/both trough and lay-down system with all necessary streams and controls and ready for production when connected with working tanks, power and air supply.
Metering Pumps [15 - 23 streams]
All metering units are controlled with auto-feedback control system. Metering units are equipped with 3-way valve with re-circulation system. All lines are equipped with pressure gauge, safety / pressure relief valves.
| Stream Parameter | Range |
|---|---|
| Polyol Conv | 50 – 230 Kgs/min |
| POP 43 | 50 – 130 Kgs/min |
| Polyol (calcium) | 50 – 300 kg/min |
| T.D.I | 30 – 110 kg/min |
| Silicone | 0.1 – 2.7 kg/min |
| Water | 1.0 – 10.0 Kg/min |
| Stannous Octoate | 0.1 – 0.9 Kg/min |
| Amine | 0.1 – 0.9 Kg/min |
| Methylene Chloride | 3.0 – 30 Kg/min |
| Colours x 4 | 1.0 – 10 Kg/min |
| Foam Hardner | 1.0 – 10 Kg/min |
| Foam Additive | 1.0 – 2.7 Kg/min |
Options Available
- Additional metering units as per client requirements
- High-speed calcium blending unit (1 or 2 Ton)
- Block cutter: horizontal or guillotine type
- Catalyst / colour tanks with higher capacities
- Motorised fall plate width adjustment
- Extra conveyors for long block system
Machine Details
| Mixer Speed | 2500 – 6000 RPM |
| Machine Dimension | Approx 4060 × 6200 × 3000 mm |
| Working Width | 1.6 – 2.2M |
| Fall Plate | 6.60M – 6 Section telescopic |
| Fall Plate Width Adjustment | Motorized |
| Bottom Conveyor | Slat conveyor 2 – 10 m/min |
| Side Walls | 1.4M height motorized |
| Paper Feeding System | Bottom & side feeding |
| Catalyst Tanks | 300L SS (500L water) |

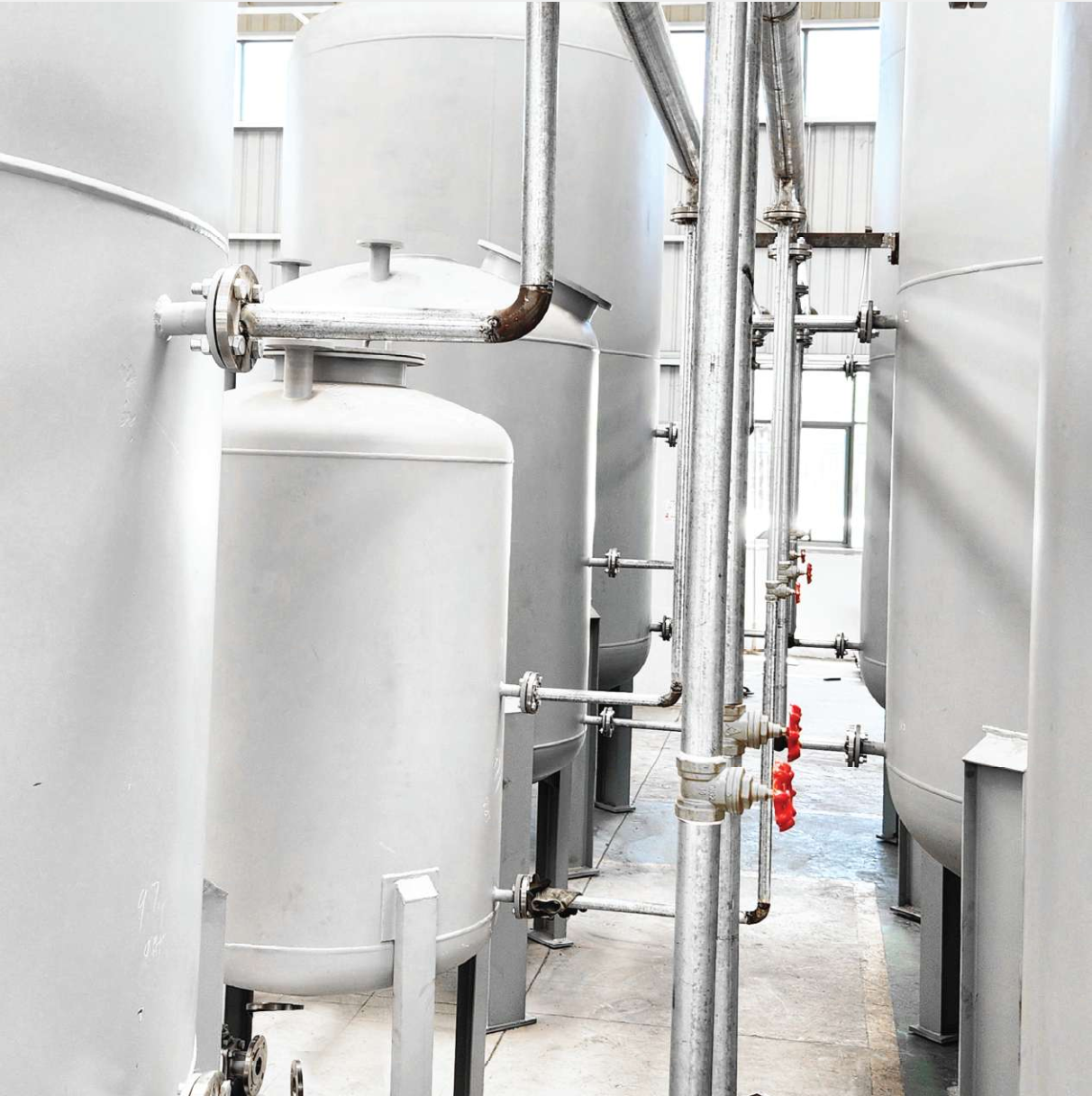

Tank Forms
Control Panel
Standalone panel equipped with drives and PLC with air-conditioner to keep the drives functioning over long time.
User Interface
Fully computerized operation with 21” industrial HMI. Easy formulation change, data saving, fault detection and remote diagnostics.

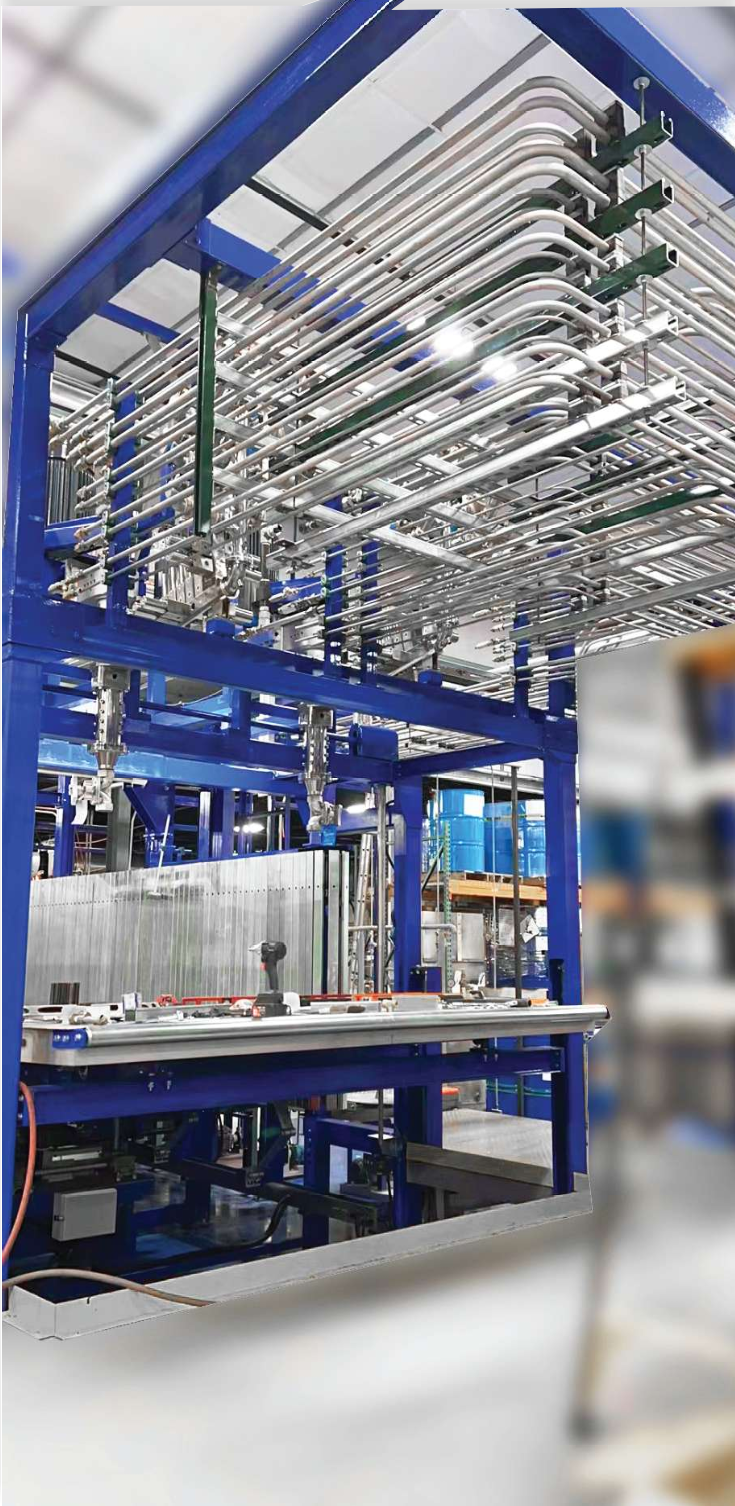

Foaming System
Trough & Laydown system with RS equipment for square block production
Block Cutter
Horizontal type with reciprocating blade.
Cutting size: L1.5M × W2.2M × H1.3M
Tank Farms & Pipe Works (Optional)
Rust-proof carbon steel tanks with cooling coil, agitator, level indicator, breather and temperature gauge.
Tank Capacities
- Polyol 1 – 8000–12000 L
- Polyol 2 – 8000–12000 L
- Polyol 3 – 8000–12000 L
- TDI – 8000 L
- Methylene – 3000 L
Accessories
Air-cooled refrigerator (30 Ton), SS water tank (1000L), 6KW heater, circulation pump and filling station.

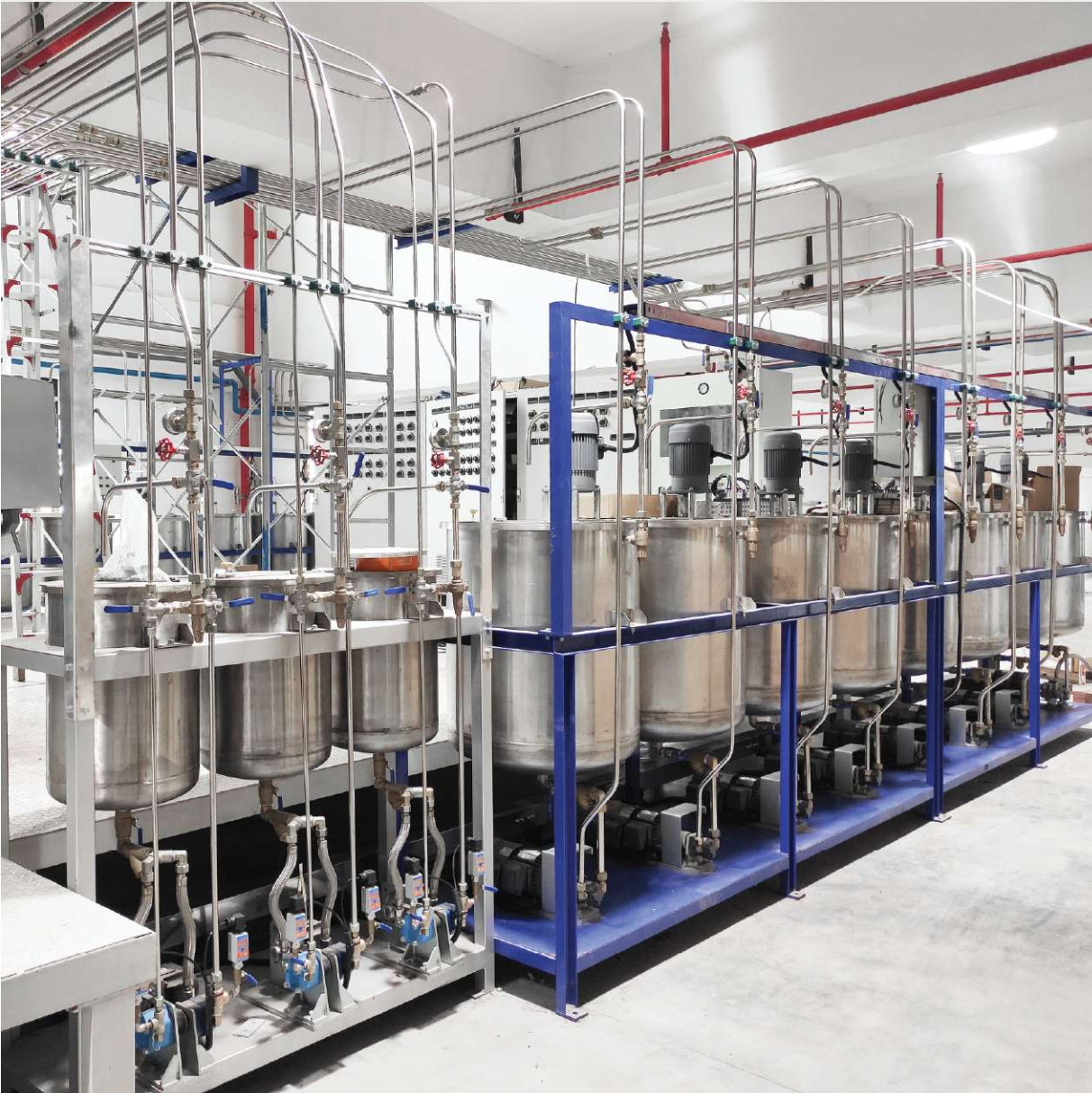

Catalyst Tanks

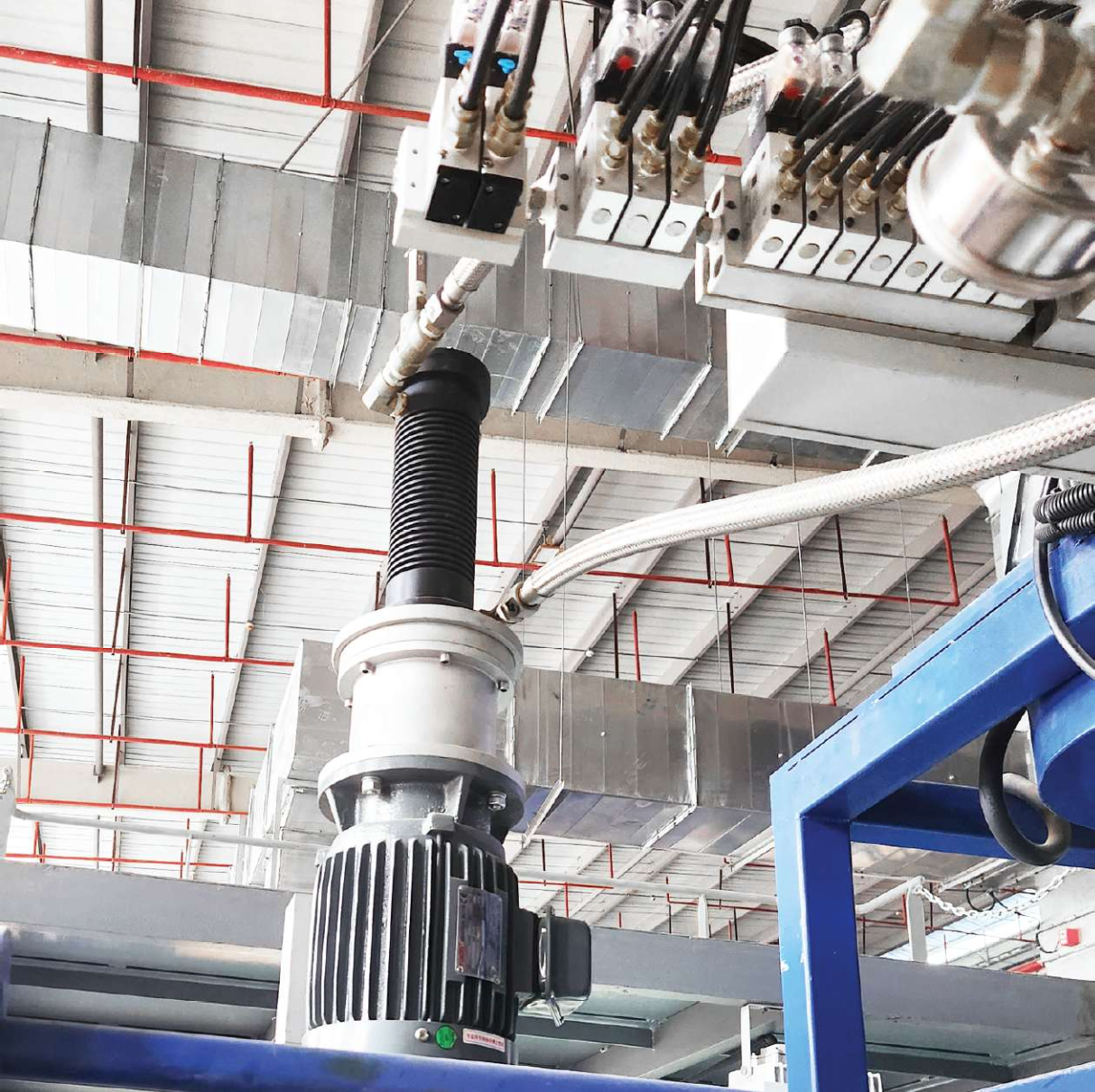

Silicone Pre-Mixer
